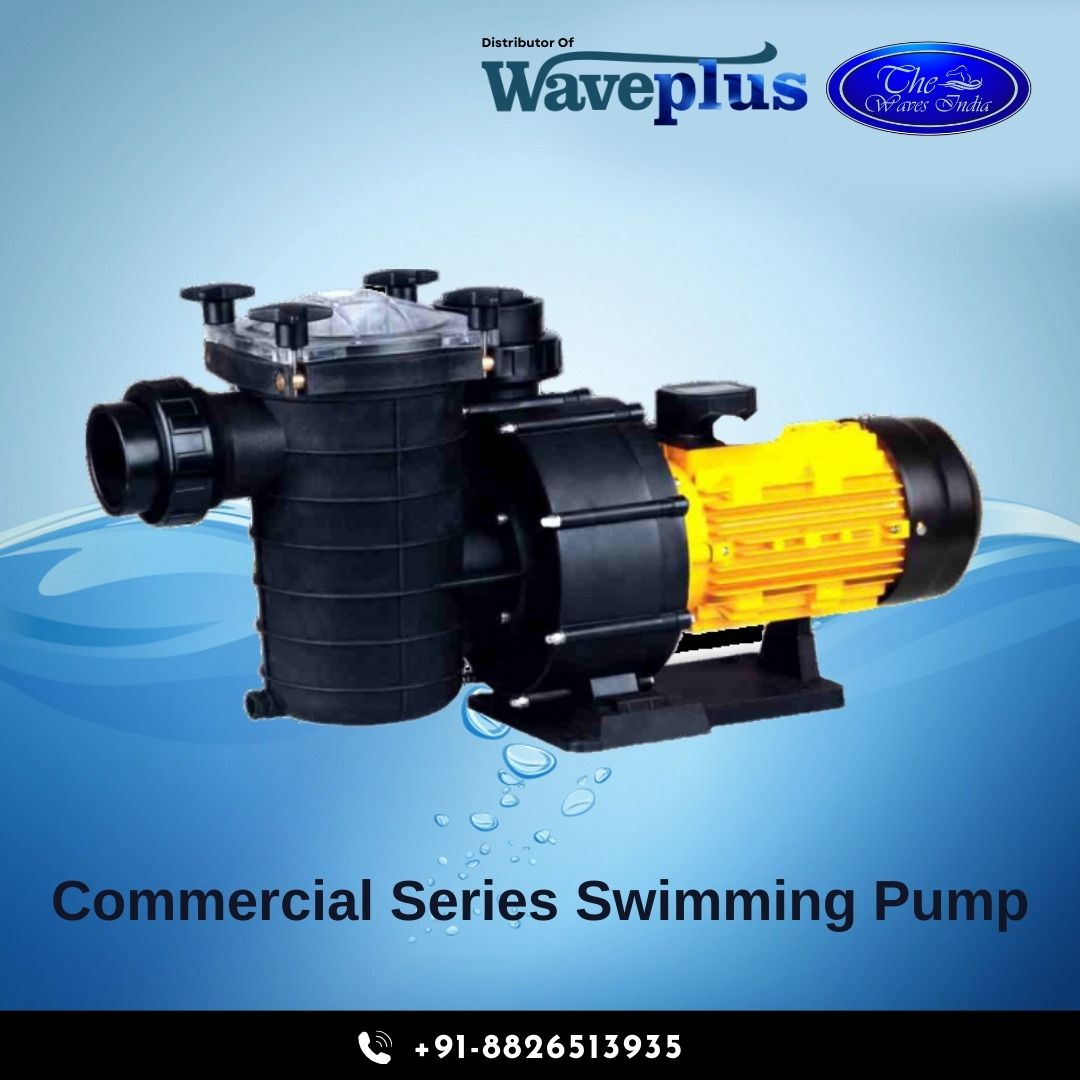

Pool Pumps
Contact Us
Mobile : +91-8826513935
Email Address : info@dswswimmingpool.in
|
|
|
|
Materials
- Self priming pump
- Injected thermo plastic pump casing
- Filter basket in white color injected plastic material
- Prefilter lid in transparent polycarbonate
- Stainless steel studs
- Impeller and seal mounting in PPO
- Motor shaft in stainless steel AISI 420
- Mechanical seal in graphite and SIC
- Motor housing in aluminium L2521
-
Motors
- Asynchronous, two poles
- IP 55 protection
- Class F insulation
- Continous operation
- Single phase version built in thermal protection
| Model | HP | KW | V | A | P1(KW) | Q | L/Min | 0 | 333.3 | 500 | 666.7 | 833.3 | 1000 | 1166.7 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50HZ | 50HZ | 220V | 380V | 1~/3~ | m³/h | 0 | 20 | 30 | 40 | 50 | 60 | 70 | ||||
| WPC0400 | 3 | 4 | 380 | 6.4 | 3.6 | H(m) | 14.5 | 14.2 | 13.5 | 12.6 | 11 | 9.5 | ||||
| WPC0550 | 5.5 | 4 | 380 | 8.3 | 4.7 | 18.2 | 17.8 | 11 | 16.3 | 16 | 13.8 | 12.2 | ||||
